quantpylib.gateway

quantpylib.gateway is a quant module used for multi-exchange integration and account management.

The clients are categorized into their gateway classes, with current support for:

- account
- exchange
- executor
- orders
- positions

The exchange clients supported are:

- binance
- bybit
- hyperliquid
- paradex
- woox

In general, a trader may have requirements for multi-exchange account management and broker integrations. Each exchange has its own authentication flow, order schema and account management - the gateway abstracts these concerns to provide a seamless, common interface for exchange integration.

Each gateway is derived from the base quantpylib.gateway.base.BaseGateway class and implements a set of methods, and routs the requests to the specified exchange client and endpoints through the argument "exc". The supported exchange clients are written as wrappers on the quantpylib.wrappers module, and their supported endpoints share the same function name as in the gateways. The different gateways are accessible via the master gateway class, given in quantpylib.gateway.master.Gateway object instance. For instance, if we would like to get position data using the quantpylib.gateway.positions.Positions.positions_get, we can do so by creating a obj = Gateway(...) instance, and calling obj.positions.positions_get(...,exc="binance"). The function call is only valid if it is supported by both the gateway type and the exchange client, which we can check by their matching function signatures. In general each exchange has its own parameters to the vendor-specific endpoint, as well as different specifications (such as limit orders through a specified price or a price-matching rule), so the library provides a flexible variation between these specifications to support the different configurations for each external API - it would be alot easier to understand through the given examples.

Note that each of the exchange client wrappers are also designed to be available for use as standalone Python-SDKs. Supported gateways and exchanges are added and updated frequently.

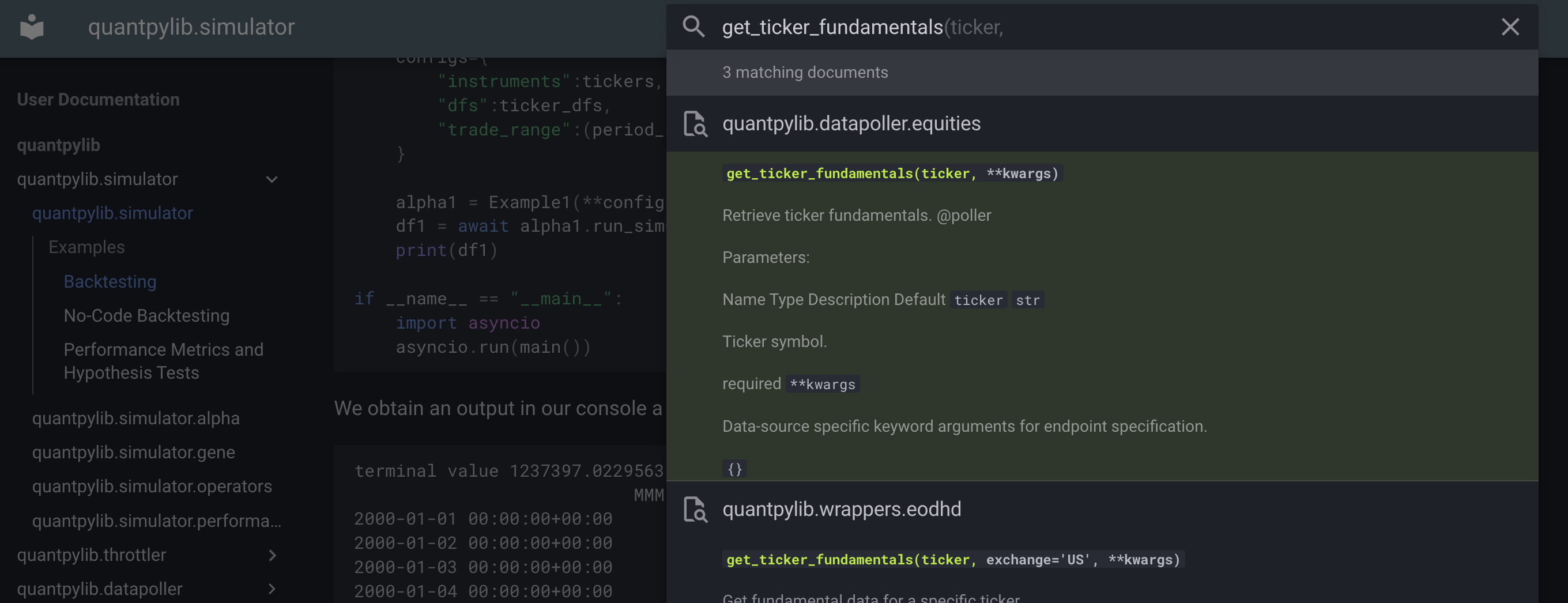

Note that the various endpoints and their matching function name-signatures can be easily looked up in the search-bar (top right): alt text

Examples

A dictionary containing configuration keys for different exchanges we want access to is formatted as "source" : { arg1 : var1 , arg2 : var2 }, where each arg is the parameter to the wrapper object instance's constructor in quantpylib.wrappers. An additional key-value for "alias" may be specified, which is used for reference to the exc parameter in the gateway methods.

We already have the keys in our .env file in the current working directory, and we will make the following imports:

import os
import logging
import asyncio
from dotenv import load_dotenv
load_dotenv()
from datetime import datetime

import quantpylib.standards.markets as markets
from quantpylib.gateway.master import Gateway

config_keys={
    "binance": {
        "alias": "binance",
        "key": os.getenv("BIN_PUBLIC"),
        "secret" : os.getenv("BIN_KEY"),
    },
    "hyperliquid": {
        "alias" : "hyperliquid",
        "key" : os.getenv("HYP_DEMO"),
        "secret" : os.getenv("HYP_KEY"),
    }
}

async def main():
    gateway = Gateway(config_keys=config_keys)
    print(gateway.exc_clients)
    await gateway.init_clients()

    #...code goes between here...

    await gateway.cleanup_clients()

if __name__ == "__main__":
    asyncio.run(main())

Account

We are interested in getting some account balances. We can simply do

res = await gateway.account.account_balance(exc='binance')
res = await gateway.account.account_balance(exc='hyperliquid')
print(res)
We get some details about equity and margin information:
{'equity_total': 1884.960586, 'margin_maintenance': 131.131965, 'margin_total': 262.26393, 'equity_withdrawable': 1622.696656, 'notional_position': 5232.9393}

We want to subscribe to updates to changes in the account's positions. This happens whenever there is an order filled. I subscribe to fill events, pass it a print-handler and let it sleep. Before the sleep times out, I made a market order on the web platform.

async def handler(msg):
    print(msg)

await gateway.account.account_fill_subscribe(exc='hyperliquid',handler=handler)
await asyncio.sleep(10)
'''
I just put in a market order... and on my console:
{'channel': 'userFills',
'data': {'user': 'demodemodemodemodemodemodemodemodemodemodemodemo',
            'fills': [{'coin': 'PENDLE', 'px': '4.1099', 'sz': '3.0', 'side': 'A', ...}}
'''
await gateway.account.account_fill_unsubscribe(exc='hyperliquid')

Exchanges

We may want to get contract specifications for valid orders:

res = await gateway.exchange.contract_specifications(exc='hyperliquid')
res = await gateway.exchange.contract_specifications(exc='binance')
print(res)

{'BTCUSDT': {'price_precision': 2, 'quote_precision': 8, 'quantity_precision': 3, 'min_notional': 100.0}},
'ETHUSDT': {'price_precision': 2, 'quote_pr...}

Executor

We want to make some limit orders:

res = await gateway.executor.limit_order(ticker='PENDLE',amount=-3,price=5.001,exc='hyperliquid')
res = await gateway.executor.limit_order(ticker='PENDLEUSDT',amount=-3,price=5.001,exc='binance')
Binance exchange allows limit order that does not need to specify price - instead, the price is set relative to the order book state through a price-matching rule. This is specified in the price_match argument to the quantpylib.wrappers.Binance.limit_order:
res = await gateway.executor.limit_order(ticker='PENDLEUSDT',amount=-3,price_match=markets.PRICE_MATCH_QUEUE_20,exc='binance')
Here, our order sits as a maker order at price 20-levels deep. Of course, there are market orders too:
res = await gateway.executor.market_order(ticker='PENDLE',amount=-3,exc='hyperliquid')
print(res)

{'status': 'ok', 'response': {'type': 'order', 'data': {'statuses': [{'filled': {'totalSz': '3.0', 'avgPx': '4.8122', 'oid': 1234}}]}}}

It is often useful to have order book data during the execution stage. We can get an order book snapshot:

res = await gateway.executor.l2_book_get(ticker='AAVE',exc="hyperliquid")
print(res)
res = await gateway.executor.l2_book_get(ticker='AAVE',exc='hyperliquid',depth=2,nsigfig=5)
print(res)
res = await gateway.executor.l2_book_get(ticker='AAVEUSDT',exc="binance")
print(res)

{'ts': 1716119324540, 'b': array([[8.7165e+01, 6.7900e+00],...])'a':array([[8.7190e+01, 3.4490e+01],[8.7198e+01, 8.3140e+01],...])}
{'ts': 1716119324940, 'b': (87.13, 48.1), 'a': (87.19, 34.49)}
{'lastUpdateId': 4633878434615, 'E': 1716119327150, 'T': 1716119327141, 'bids': [['87.090', '25.7'], ['87.080', '29.9'], ['87.070', '76.1'], ['87.060', '111.7'], ['87.050', '87.9'], ['87.040', '80.8'], ['87.030', '34.1'], ['87.020', '179.0'], ['87.010', '130.4'], ['87.000', '190.9']], 'asks': [['87.100', '0.2'], ['87.110', '8.8'], ['87.120', '27.9'], ['87.130', '37.2'], ['87.140', '118.4'], ['87.150', '57.9'], ['87.160', '40.3'], ['87.170', '83.7'], ['87.180', '130.3'], ['87.190', '26.4']]}
Instead of requesting a snapshot each time we need it, a socket subscription is probably more efficient if we need a constant stream of order book updates:
await gateway.executor.l2_book_subscribe(ticker='BTC',handler=handler,exc='hyperliquid')
await gateway.executor.l2_book_subscribe(ticker='BTCUSDT',handler=handler,exc='binance',depth=5)
await asyncio.sleep(3)
The handler will be invoked each time we receive an order book event or some interval. Our handler is just the print statement:
{'ts': 1716119783147, 'b': [[67372.0, 0.68409], [67371.0, 0.56], [67370.0, 0.46385],...]...}
Let's unsubscribe.
print(gateway.executor.l2_book_subscriptions(exc='hyperliquid'))
await gateway.executor.l2_book_unsubscribe(ticker='BTC',exc='hyperliquid')
print(gateway.executor.l2_book_subscriptions(exc='hyperliquid'))
Or maybe we just want mid-prices
await gateway.executor.all_mids_subscribe(handler=handler,exc='hyperliquid')
await asyncio.sleep(5)
await gateway.executor.all_mids_unsubscribe(exc='hyperliquid')
await asyncio.sleep(5)

Orders

We have order endpoints too. We can get order details using their ID:

print(await gateway.orders.order_query(id=12345,exc='hyperliquid'))
print(await gateway.orders.order_query(id=1,ticker="PENDLEUSDT",exc='binance'))

We want a snapshot of the orders page on the exchange:

print(await gateway.orders.orders_get(exc='hyperliquid'))
print(await gateway.orders.orders_get(exc='binance'))
We get
{1234: {'ticker': 'PENDLE', 'order_id': '1234', 'limit_price': 5.001, 'amount_total': Decimal('-3.0'), 'amount_left': Decimal('-3.0'), 'timestamp': 000000}}
{1234: {'ticker': 'PENDLEUSDT', 'order_id': '1234', 'limit_price': 5.001, 'amount_total': Decimal('-3'), 'amount_filled': Decimal('-0'), 'tif': 'GTC', 'timestamp': 000000}}

If we need to maintain a local copy of the orders page, it would be more suitable to use event subscriptions. The orders_mirror and orders_peek use the underlying socket endpoints available to keep an updated local copy of it. We need to mirror once, then subsequent calls to peek will fetch the local copy. Additionally, we may want to attach a callback handler, which is invoked whenever the local copy of the order book is modified:

try:
    await gateway.orders.orders_peek(exc='hyperliquid')
except ValueError as e:
    print(e)

await gateway.orders.orders_mirror(exc='hyperliquid') #OR
await gateway.orders.orders_mirror(on_update=handler,exc='hyperliquid')
await gateway.orders.orders_mirror(on_update=handler,exc='binance')
print(gateway.orders.orders_peek(exc='hyperliquid'))
print(gateway.orders.orders_peek(exc='binance'))
await asyncio.sleep(100)
The handler receives the entire updated, local order page state when passed into the orders_mirror function, but we may prefer to receive just the realtime order event:
await gateway.orders.order_updates_subscribe(handler=handler,exc='hyperliquid')
await asyncio.sleep(100)
await gateway.orders.order_updates_unsubscribe(exc='hyperliquid')

Positions

We can get position details. As in the Orders gateway, we can request for a snapshot

res = await gateway.positions.positions_get(exc='binance')
res = await gateway.positions.positions_get(exc='hyperliquid')
print(res)

{'SOL': {'ticker': 'SOL', 'amount': Decimal....'unrealized_pnl': 1315.35}}
Or keep a local copy and peek:
try:
    await gateway.positions.positions_peek(exc='hyperliquid')
except ValueError as e:
    print(e)
await gateway.positions.positions_mirror(on_update=handler,exc='binance')
await gateway.positions.positions_mirror(on_update=handler,exc='hyperliquid')
await asyncio.sleep(100)
print(gateway.positions.positions_peek(exc='hyperliquid'))
